ZKManet2971 is a portable three-screen command box developed for on-site command, which integrates MESH self-organizing network, 5G public network, WIFI and wired network, integrates multiple services such as voice, video, location and data information at the scene of the accident, with unified presentation, unified management, provides three-screen display function to achieve the visualization of the command and can project the screen to the big screen system of the front command department and link with the rear command center to realize the upward and downward communication. The screen can be projected to the large screen system of the front command department, and link with the rear command center to realize the upward and downward communication.

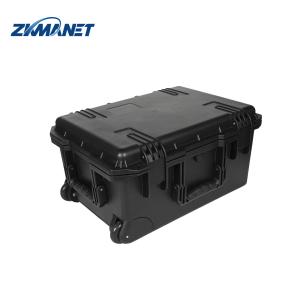

* Portable case design
* Triple HD screen design
* Supports multiple HDMI outputs simultaneously
* Support external MIC, headset
* support a variety of voice input and output options
* Support MESH network, public network 4G/5G, Wi-Fi, wired network and other links access
| System parameter | |
| Operating system | Windows 10 64-bit |
| Monitor | 17.3" *3 |
| (Technical) Resolution | 1920*1080 |
| CPU | CPU: i7-12700F 12 cores 20 threads |
| RAM | DDR4-64G RAM |
| Disk | 1TB Solid State Drive |
| Audio | Built-in speaker and pickup |
| RF parameters | |
| Working Frequency | 1.4GHz, (300MHz-3.8GHz can be customized) |
| Default Frequencies | 5/10/20/40MHz, 20MHz (Typical) |
| RF channel | 2T2R |
| Output power | 43dBm |
| Network parameters | |
| Ad Hoc Network nodes | 64nodes |
| Ad Hoc Network throughout | 82Mbps |
| Encryption | AES |
| Public network | 4G/5G All-network |
| WIFI | 2.4GHz |
| Transmission distance | 10-20km(Visible range) |
| Physical | |
| Size | 570 * 416 * 282mm |
| Weight | 26kg(Battery included) |
| Operating Temperature | -20ºC~ +40ºC |
| Storage Temperature | -30 ~ +60ºC(condensation-free) |
| Operating Humidity | 10% ~ 90% Relative humidity, no condensation |
| Electrical Characteristics | |
| Electricity | 19-24V |
| Battery capacity | 42Ah |
| Interfaces | |
| MESH Antenna Interface | N*2 |
| 5G Antenna Interface | SMA*4 |
| WIFI Interface | SMA*1 |
| GPS Interface | SMA*1 |
| Audio Interface | 7-core Rammer head*1,3.5mm*2 |
| Video Interface | HDMI*3 |
| Data Interface | USB*6 |
| Network port | Gigabit Ethernet port*3 |
